The sidebar becomes a rail of your projects, and the whole app goes on one layout grid so its edges and centre lines meet.

The project rail (new default sidebar)

  • A 60px rail: your pinned places (with their badges) and More, then a tile per project and a way to add one, Settings at the foot.
  • A tile is the project's GitHub owner's avatar, or an identicon made from its name. Projects that share an owner get a letter badge. A dot turns amber while an agent in it needs you, blue while one works; hovering says what.
  • Beside it, on a sheet with a rounded corner: the picked project's header (avatar, name, "N worktrees · boxes", New task, its menu), search (⌘K), and its worktree rows as the list draws them.
  • With one project there's no rail. Opening a worktree from anywhere picks its project.
  • Folded away (⌘\), the rail stays: search, notifications, places and the project tiles; a tile opens the sheet on its project.
  • Default for everyone: prefs version 4 moves the list to the rail once; a two-column sidebar someone chose stays. Settings › Appearance › Sidebar picks Rail, List or Two columns (it replaces the Labs switch).

One layout grid

Tokens in index.css ("The layout grid"): h-bar, h-bar-pane, px-edge, pl-lane, px-page, w-rail, w-rail-folded.

  • Top band: the sidebar's strip in every layout, the tab bar, the Compare bar, every full-page view's header, Settings', onboarding's and zen's strips and the notification centre are all h-bar: 40px at the default text size and smaller, growing only past it. The traffic lights move to its middle (trafficLightPosition.y 18 → 22), so everything in the band is on one centre line. A full page's header is now a single band row, its title at the window-title size.
  • Folded sidebar: 88px at the least. The lights run from 14pt to 74pt, so that's 14 clear on either side with the lights over the rail's icons; it used to be 76px in rem, which ran under the lights at small text sizes.
  • Two tones: the rail, the top band and the status bar are the frame; the sheet and the main area are one surface.
  • Pane toolbars: pane headers, the browser and preview bars, devtools, Files and the file preview are h-bar-pane (they were five heights).
  • Gutters and lanes: in all three sidebar layouts and Settings' nav, row boxes start and end on the edge and their glyphs, labels and dots on the lane; full pages' content starts on their title's gutter. Row-relative offsets are in rem, so they hold at any text size ("Show N older" used to drift ~5px). "Show N older" / "Show fewer" now read as controls: a chevron in the glyph column, quieter and smaller words.
  • Kept there: pnpm check:grid (new, in CI and AGENTS.md) fails on a bar of its own height or a raw-pixel gutter; a deliberate exception carries a grid-ok: why comment.

Proof (mock data)

Light Dark

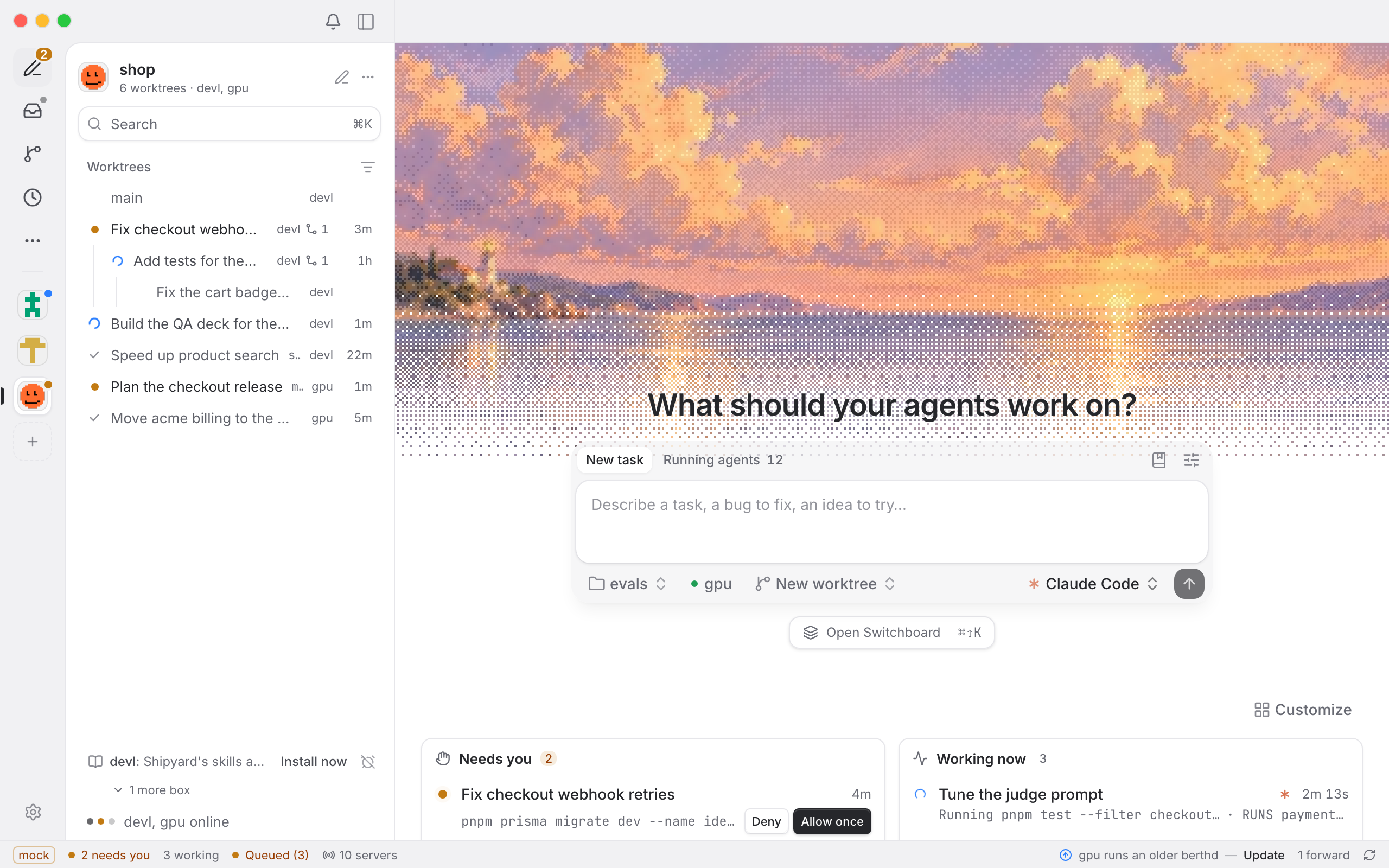

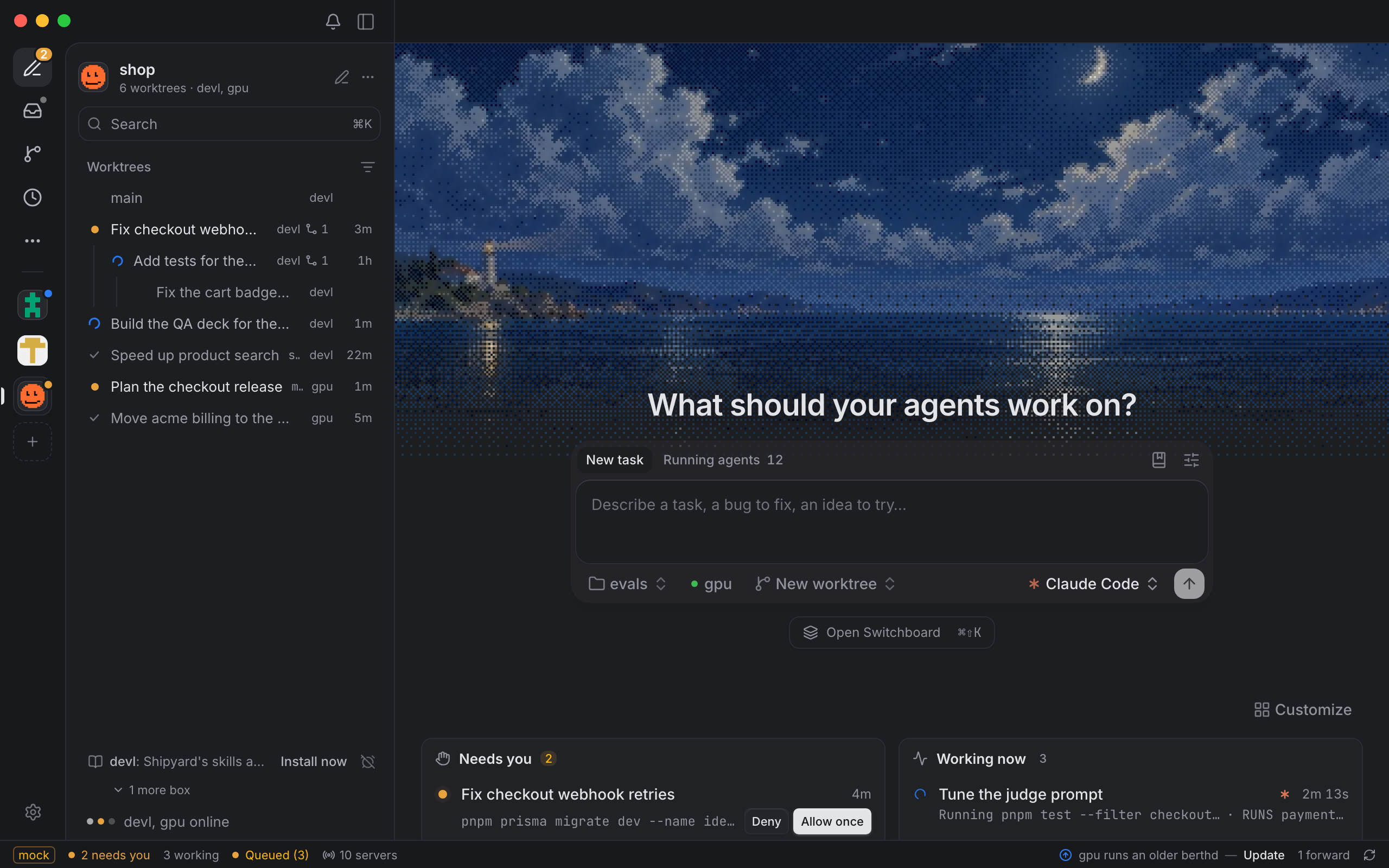

Rail, Home

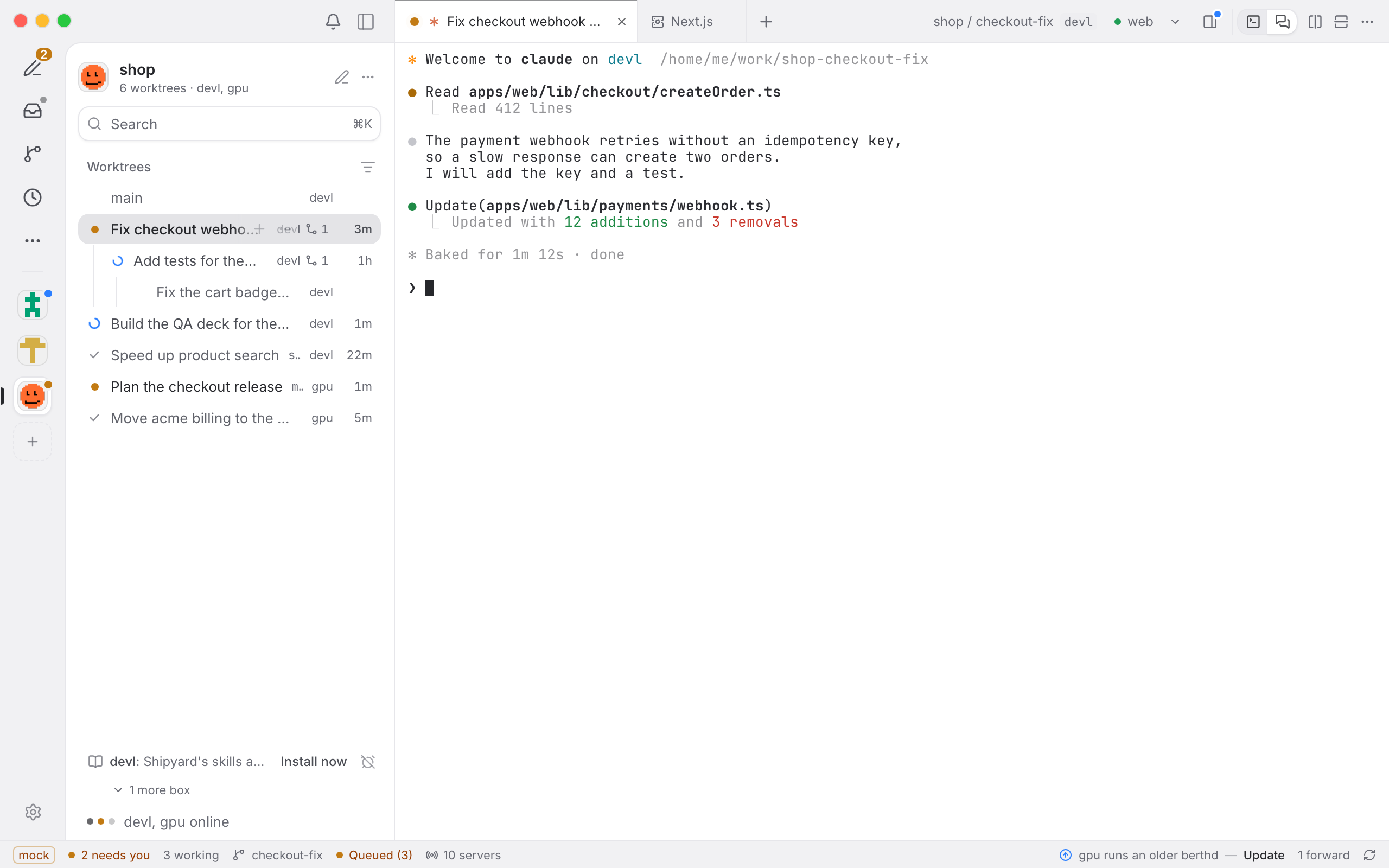

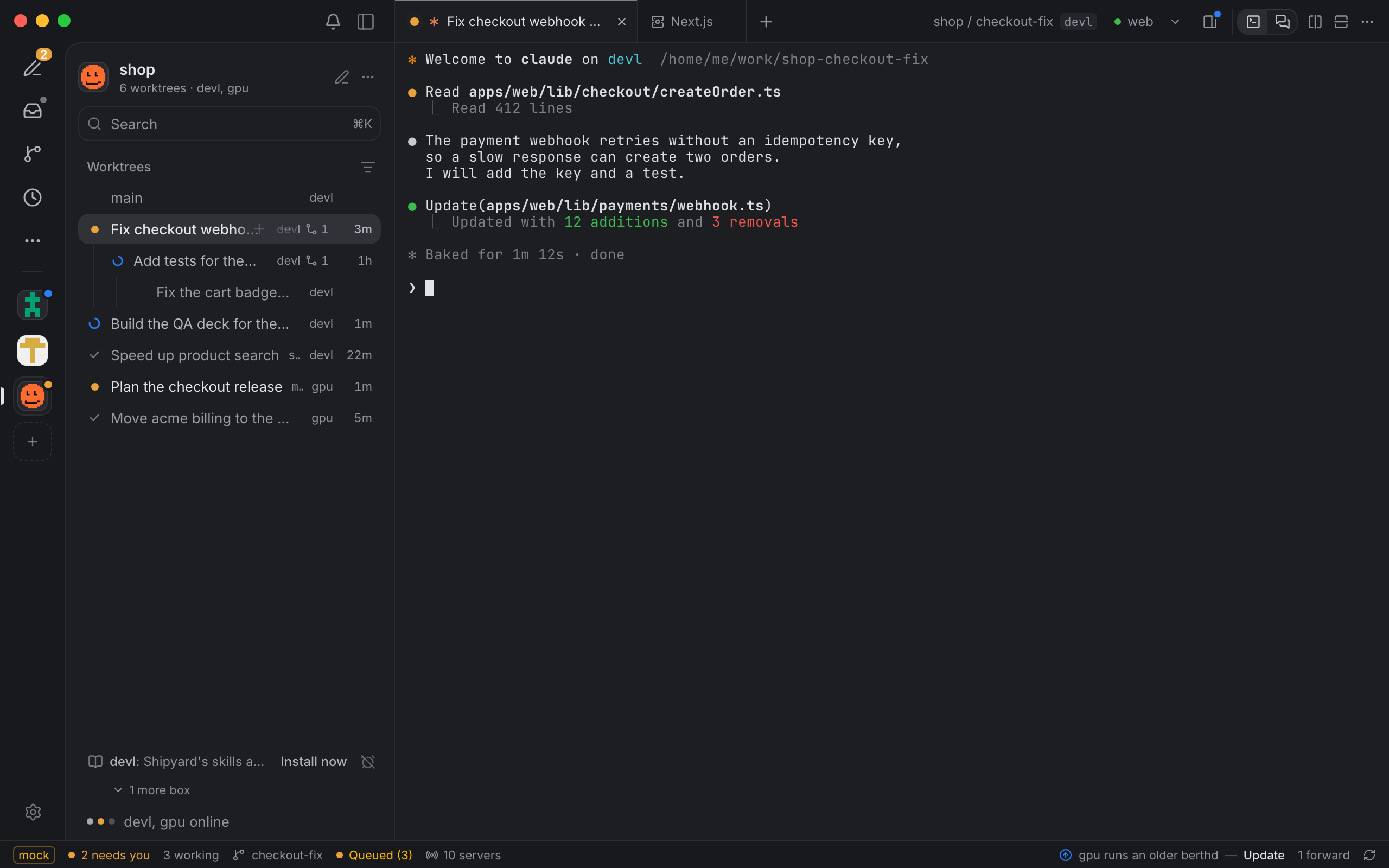

Rail, a worktree's tabs

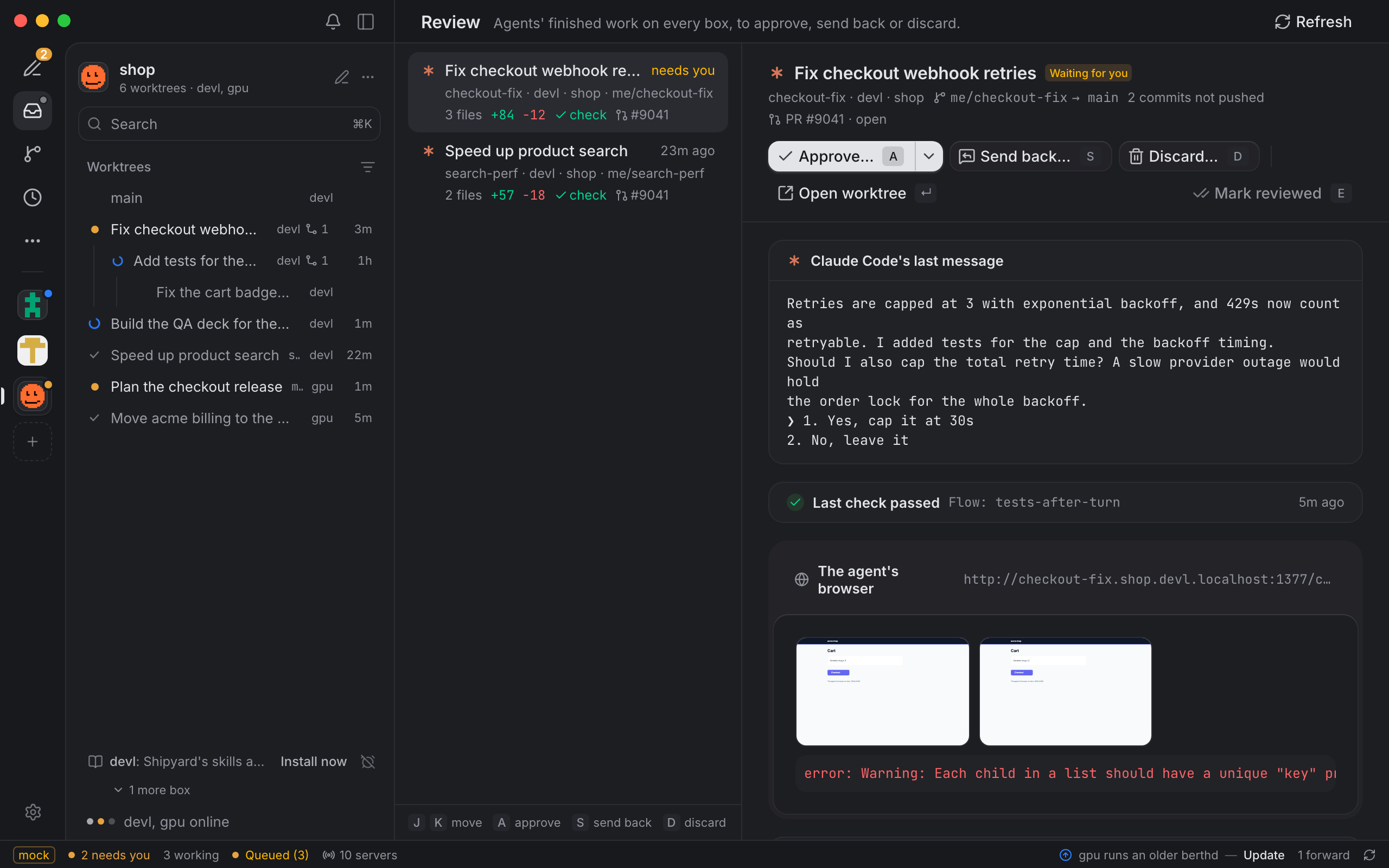

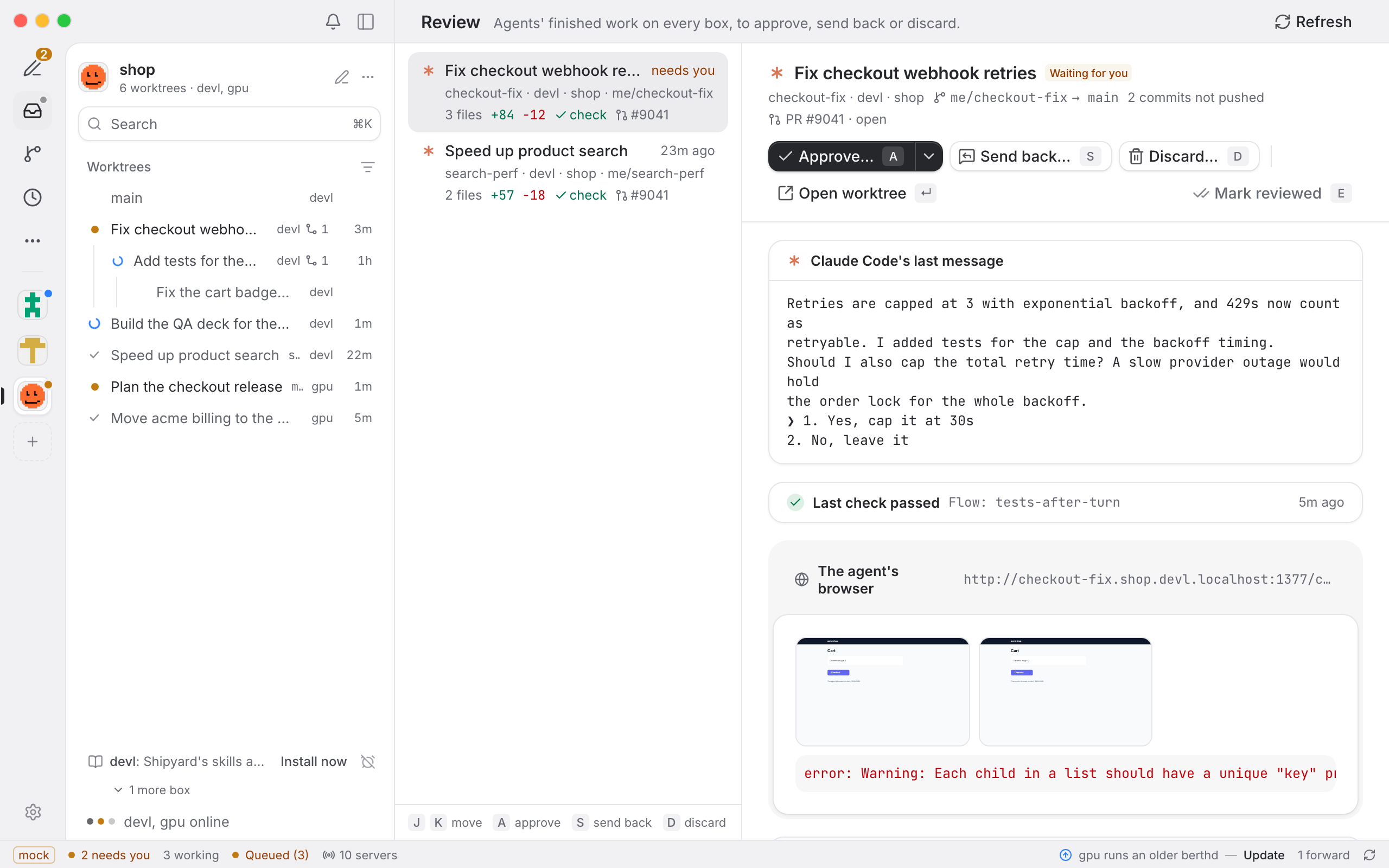

Review (a full page's header in the band)

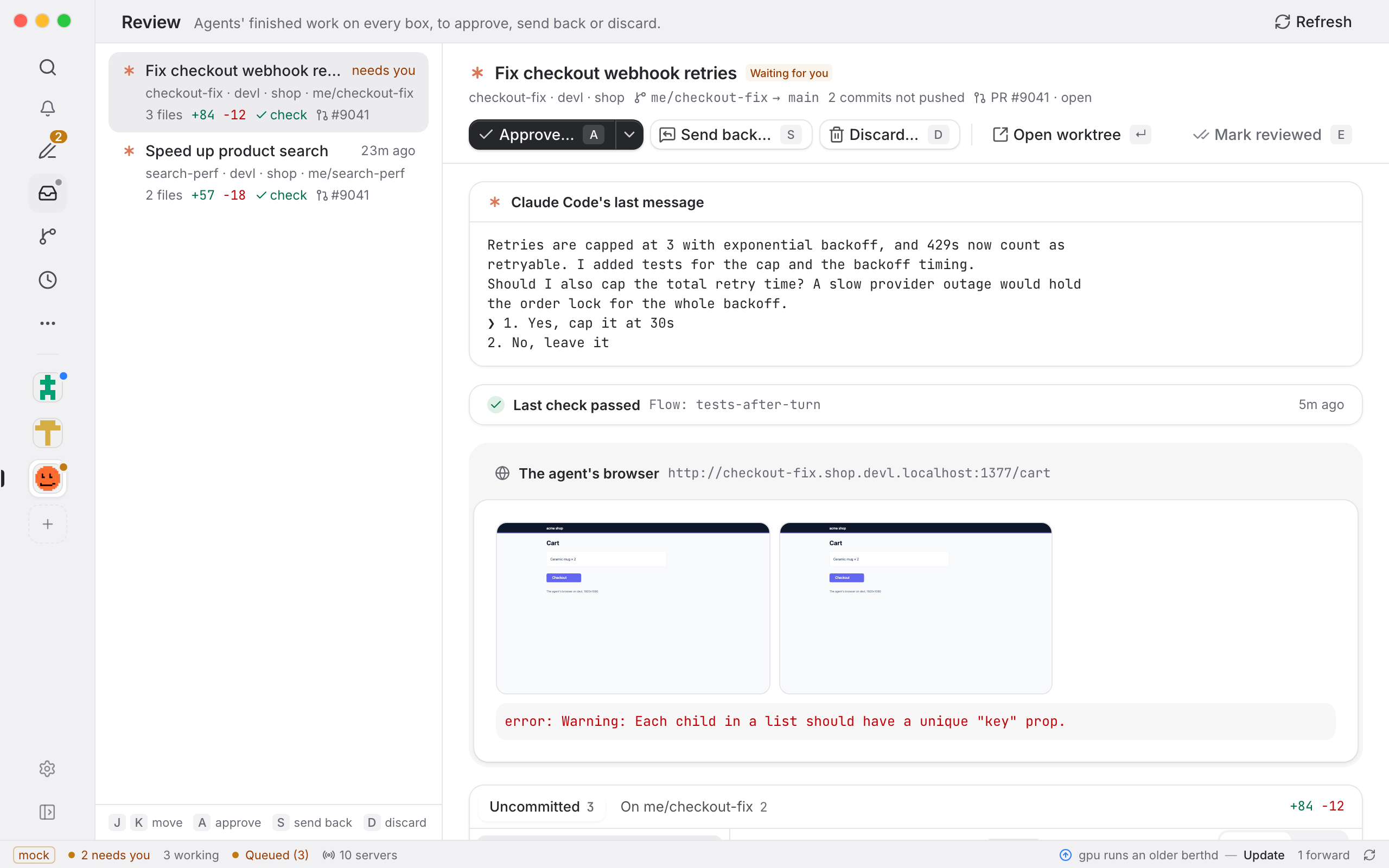

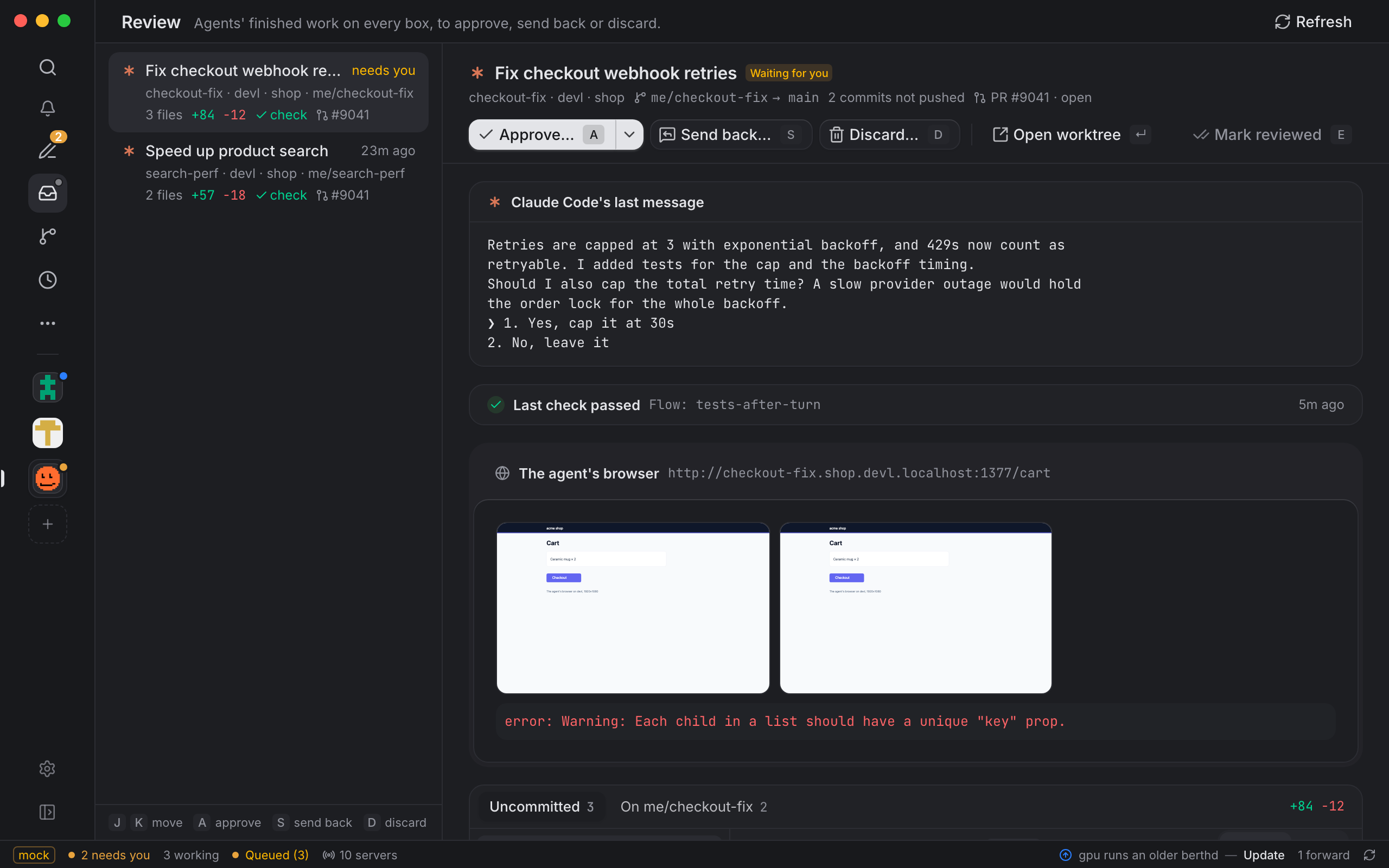

Folded (⌘\)

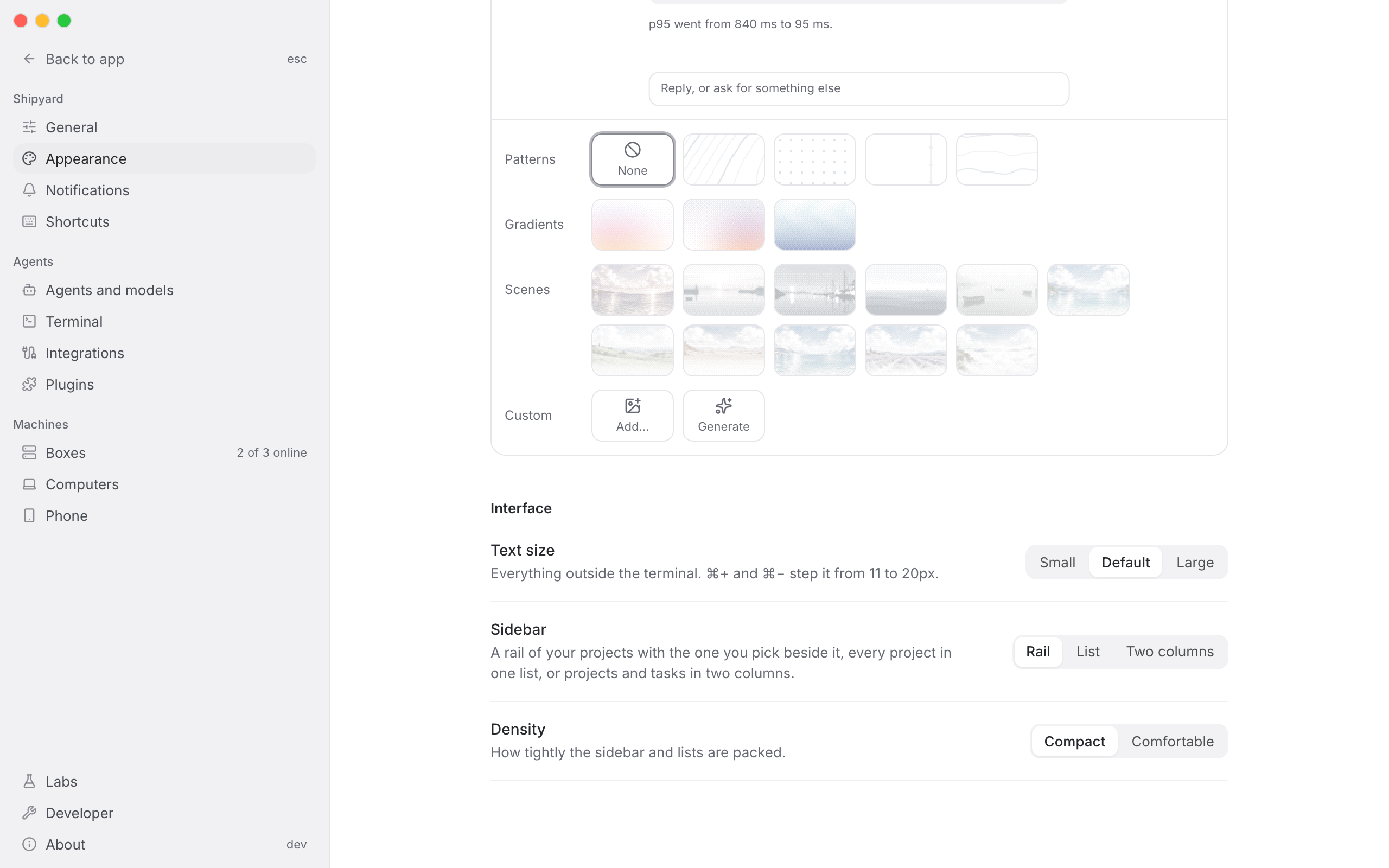

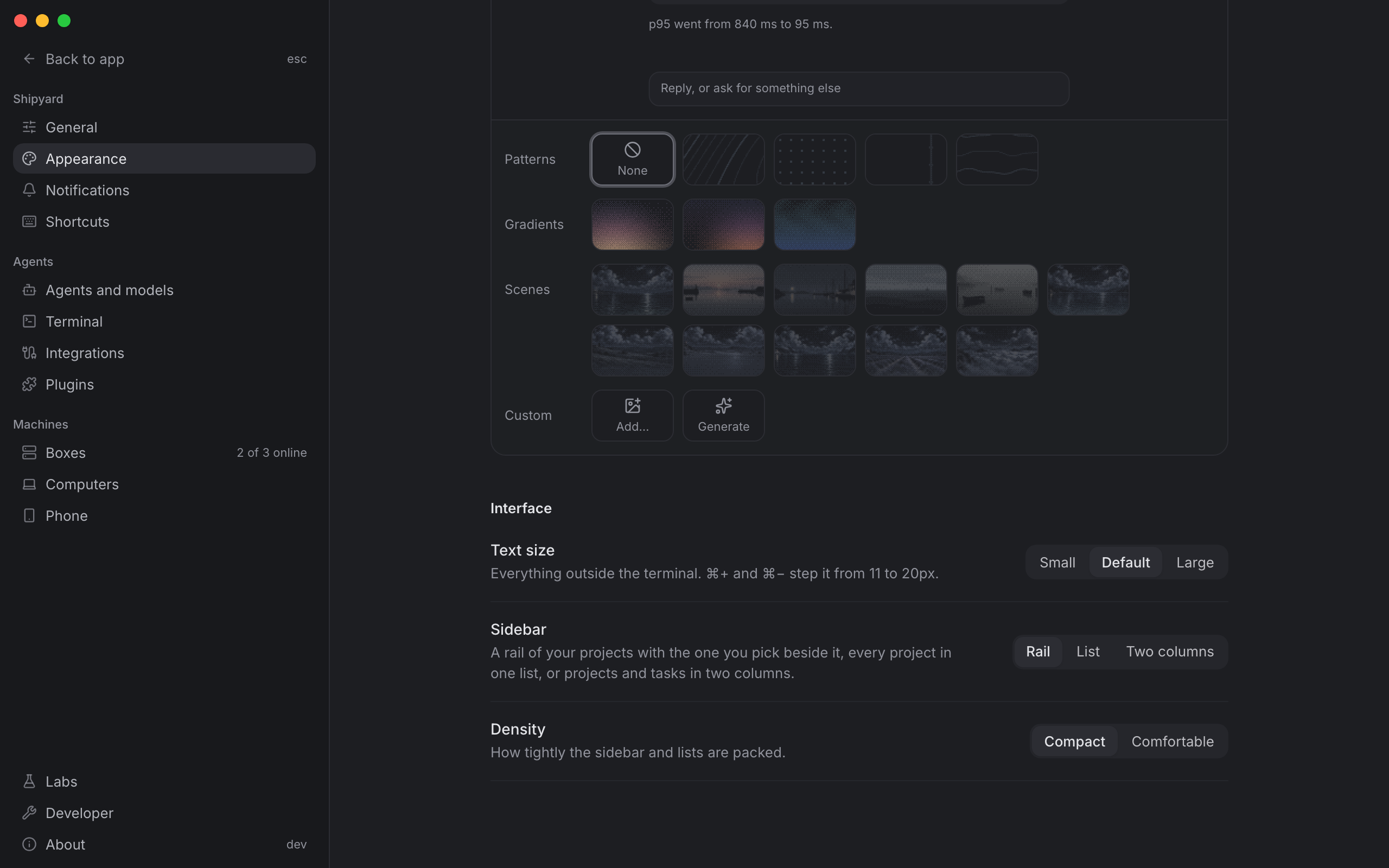

Settings › Appearance › Sidebar

Checked natively in a dev build too: the traffic lights, bell, hide button, tab titles and + share one centre line; the sheet's top border carries on the tab bar's; the lights measure 14–74pt, which sets the folded width.

Tests

  • New specs: sidebar-rail (tiles, picking, ⌘K, folding, migration, lanes, top line), grid (one band height with its controls centred, in every layout and at text sizes 11/13/16), sidebar-list and a columns lanes test, page-gutters; a11y scenes for the rail and the folded rail (light and dark). Existing specs pin the list via ?sidebar=list unless they test another layout.
  • Full suite: 489 passed before the last round; the failures were a load flake (passes on rerun) and the crew Report spec, which now allows the report's edge to peek in under the tab bar. Since then: rail, resize, list, nesting, grid and a11y specs pass.
  • check:titles, check:type, check:grid, check:csp, check:themes, unit tests (543), build, tsc -p e2e, cargo check, docs build.

🤖 Generated with Claude Code

sean-brydon and others added 10 commits October 18, 2026 18:44
@sean-brydon @claude
feat(app): the sidebar is a rail of your projects, with the picked on…
40ffb53
…e's worktrees beside it

Each project is a tile on a narrow rail: its GitHub owner's avatar, or an
identicon from its name, with a letter when projects share an owner, and a
dot that is amber while an agent in it needs you and blue while one works.
The pinned places, More and Settings sit on the rail; the sheet beside it
has the project's header, search, and its worktree rows as the list draws
them. With one project there is no rail.

It is the default layout: saved prefs move to it once (version 4), except
a two-column sidebar someone chose. Settings › Appearance › Sidebar picks
Rail, List or Two columns; the browser specs pin the list unless they test
another layout.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
fix(app): the rail's sheet lines up, with its top on the tab bar's line
d7f58d6
Everything on the sheet sits on two lanes: boxes (the avatar, search, a
row's highlight, the boxes' line) 12px in from either edge, and their
contents (search's icon, the label, a row's glyph, the boxes' dots) where a
row's padding puts its glyph. "Show N older" starts where a row's title
does at any text size (it was in px, the rows in rem). The sheet's top
border carries on the tab bar's bottom one.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
feat(app): one layout grid — every top band is one height, on the tra…
9fdb79a
…ffic lights' centre line

Tokens in index.css (h-bar, h-bar-pane, px-edge, pl-lane, px-page,
w-rail). The sidebar's strip in every layout, the tab bar, the Compare bar,
a full-page view's header, Settings', onboarding's and zen's strips and the
notification centre's header are all h-bar: 40px at the default text size
and smaller, growing only past it, as the traffic lights are placed once in
points. The lights move to the band's middle. A view's header is now a
single band row, its title the window-title size.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
test(app): check-grid finds bars and gutters off the grid, and a spec…
9e3c390
… pins the top band

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
feat(app): every pane's and panel's toolbar is one height, its contro…
920b488
…ls on the column's edge

A split pane's header, the Browser and Preview bars (and the agent's view,
its tabs and the sandbox bar), the Console/Network drawer and its filter
bar, the Files panel's header, a File tab's header and its conflict bar,
the ⌘P preview's header and a file card's header are all h-bar-pane (32px),
their outer controls on px-edge (12px). The Compare bar's sides move to the
edge too; Review's diff header and the worktree sheet's Commits line take
the edge and page tokens at their current heights.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
fix(app): the sidebars and full pages line up on one grid
f550fea
The list and two-column sidebars use the rail sheet's lanes: rows'
highlights on px-edge, their glyphs, labels and section folds on
pl-lane, and every right end (rows, menus, Settings, the bell and the
hide button) on px-edge. Full-page views put their content on px-page,
under the header's title; centred pages keep their content width.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
merge feat/grid-panes: pane and panel toolbars on h-bar-pane and the …
48f6244
…edge

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
merge feat/grid-gutters: the list and two-column sidebars, Settings' …
2a2fbc6
…nav and full-page views on the grid's gutters and lanes

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
fix(app): the last of the app goes on the grid, and CI keeps it there
a49862d
Same-size bars use the tokens; the tree's indent and the zoom HUD are in
rem; the Team pages start on the page gutter; the rail's letter badge is on
the type scale. check-grid looks at horizontal gutters only, skips the
illustrations, and takes a grid-ok comment for the few deliberate
exceptions, each saying why. CI runs pnpm check:grid.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
test(app): the crew report spec allows the report's edge to peek in u…
93b4601
…nder the tab bar

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@vercel

vercel Bot commented Oct 18, 2026 •
edited
Loading

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated
berth Ready Ready Preview Oct 18, 2026 8:00pm UTC
berth-docs Ready Ready Preview Oct 18, 2026 8:00pm UTC

Request Review

@sean-brydon @claude
feat(app): folded away, the rail sidebar keeps its project rail, clea…
8172635
…r of the traffic lights

⌘\ in the rail layout hides the sheet and keeps the rail, with search and
the notifications from the strip, and a tile opens the sheet on its
project. The folded sidebar is never narrower than the traffic lights need
(w-rail-folded, 76px at the least); it was sized in rem and ran under them
at small text sizes.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
sean-brydon and others added 3 commits October 18, 2026 20:40
@sean-brydon @claude
fix(app): the folded sidebar is 88px, the traffic lights over its middle
ed6db20
The lights run from 14pt to 74pt; at 76px the green one met the rail's
edge. 88 leaves 14 clear either side and centres them over the rail's
icons.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
fix(app): the rail's sheet is the main area's colour, so the app has …
e86dde7
…two tones

The rail, the top band and the status bar are the frame; the sheet and the
main area are one surface beside it. The sheet was a blend of the two, a
third tone that matched neither.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon @claude
fix(app): Show N older and Show fewer read as controls, not worktrees
8cfa981
A chevron where a row's glyph goes, and quieter, smaller words that still
start on the titles' line.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
@sean-brydon
sean-brydon merged commit bd4db73 into main Oct 18, 2026
5 of 8 checks passed
@linear-code

linear-code Bot commented Oct 18, 2026

Copy link
Copy Markdown

ENG-6407

@sean-brydon sean-brydon mentioned this pull request Oct 18, 2026
Merged
sean-brydon added a commit that referenced this pull request Oct 18, 2026
@sean-brydon @claude
fix(app): Settings › Labs builds again after #153 and #154 met
ae0d7d7
The merge kept an old Labs page: the Structured agents switch and its
pref, which #153 removed (agents run in chat now), and the two-column
switch, which #154 moved to Appearance › Sidebar. main didn't typecheck.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
