Rust Axum + SeaORM + PostgreSQL + PgAdmin + Swagger + Docker

A fully containerized boilerplate for building a scalable Rust backend using:

• Axum 0.8 – async web framework
• SeaORM – async ORM
• PostgreSQL 17
• PgAdmin 4 – GUI database management
• Swagger UI + Utoipa – OpenAPI documentation
• Docker Compose – development environment with hot-reload

---

📁 Repository

Source code repository:
https://github.com/asepindrak/rust-axum-seaorm-postgres-swagger-docker

Clone the project:

git clone https://github.com/asepindrak/rust-axum-seaorm-postgres-swagger-docker.git

---

🚀 Features

• Layered architecture:
  routes → services → repositories → entities
• Hot reload using cargo watch
• Auto OpenAPI generation via utoipa
• Built‑in Swagger UI at: http://localhost:3000/swagger
• PgAdmin at: http://localhost:8080
• PostgreSQL volume persistence
• Environment‑based configuration
• Fully dockerized setup

---

🏗️ Architecture Overview

          ┌───────────────────────────────┐
          │            Client              │
          └───────────────┬───────────────┘
                          │ HTTP (REST)
                          ▼
            ┌───────────────────────────┐
            │           Axum            │
            │        (Routes Layer)     │
            └───────────────┬──────────┘
                            │ calls
                            ▼
            ┌───────────────────────────┐
            │         Services          │
            │  (Business Logic Layer)   │
            └───────────────┬──────────┘
                            │ calls
                            ▼
            ┌───────────────────────────┐
            │       Repositories        │
            │        (Data Access)      │
            └───────────────┬──────────┘
                            │ SeaORM
                            ▼
               ┌───────────────────────┐
               │     PostgreSQL 17     │
               └───────────────────────┘

        ┌────────────────────────────────────┐
        │            PgAdmin 4               │
        │ (Inspect database / backup / UI)   │
        └────────────────────────────────────┘

---

📁 Project Structure

rust-axum-seaorm-postgres-swagger-docker/
│
├── src/
│   ├── app_state.rs
│   ├── main.rs
│   ├── errors.rs
│   ├── openapi.rs
│   │
│   ├── routes/
│   │   ├── mod.rs
│   │   ├── health.rs
│   │   └── users.rs
│   │
│   ├── services/
│   │   ├── mod.rs
│   │   └── user_service.rs
│   │
│   ├── repositories/
│   │   ├── mod.rs
│   │   └── sea_user_repo.rs
│   │
│   ├── dto/
│   │   ├── mod.rs
│   │   └── user_dto.rs
│   │
│   └── entities/
│       ├── mod.rs
│       └── user.rs
│
├── migrations/
│   └── init.sql
│
├── pgadmin_storage/
├── Dockerfile.dev
├── Dockerfile
├── docker-compose.yml
├── Cargo.toml
└── README.md

---

⚙️ Environment Variables (.env)

POSTGRES_USER=postgres
POSTGRES_PASSWORD=postgres
POSTGRES_DB=axum_seaorm
POSTGRES_PORT=5435

DB_HOST=db
DATABASE_URL=postgres://${POSTGRES_USER}:${POSTGRES_PASSWORD}@${DB_HOST}:5432/${POSTGRES_DB}

RUST_LOG=axum_seaorm=debug,tower_http=debug

APP_PORT=3000

PGADMIN_EMAIL=admin@example.com
PGADMIN_PASSWORD=admin123
PGADMIN_PORT=8080

PGADMIN_EMAIL_ESCAPED=admin_example.com

---

🐳 Docker Compose (docker-compose.yml)

version: "3.8"

services:
  db:
    image: postgres:17
    container_name: axum-seaorm-db
    env_file:
      - ./.env
    environment:
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      POSTGRES_DB: ${POSTGRES_DB}
    ports:
      - "${POSTGRES_PORT}:5432"
    volumes:
      - postgres_data:/var/lib/postgresql/data
      - ./migrations/init.sql:/docker-entrypoint-initdb.d/init.sql:ro
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U ${POSTGRES_USER}"]
      interval: 5s
      timeout: 5s
      retries: 5

  app:
    build:
      context: .
      dockerfile: Dockerfile.dev
    container_name: axum-seaorm-app
    ports:
      - "${APP_PORT}:3000"
    depends_on:
      db:
        condition: service_healthy
    env_file:
      - ./.env
    environment:
      DATABASE_URL: ${DATABASE_URL}
      RUST_LOG: ${RUST_LOG}
    volumes:
      - ./src:/app/src:ro
      - ./Cargo.toml:/app/Cargo.toml:ro
      - cargo_cache:/usr/local/cargo/registry
      - target_cache:/app/target

  pgadmin:
    image: dpage/pgadmin4:7
    container_name: axum-seaorm-pgadmin
    restart: unless-stopped
    environment:
      PGADMIN_DEFAULT_EMAIL: ${PGADMIN_EMAIL:-admin@example.com}
      PGADMIN_DEFAULT_PASSWORD: ${PGADMIN_PASSWORD:-admin123}
    ports:
      - "${PGADMIN_PORT:-8080}:80"
    depends_on:
      - db

volumes:
  postgres_data:
  cargo_cache:
  target_cache:

---

▶️ Run the Project

Start everything

docker compose up --build

Swagger UI

👉 http://localhost:3000/swagger

PgAdmin

👉 http://localhost:8080
Login:

• Email: from .env
• Password: from .env

Register PostgreSQL server in PgAdmin

Host: db
Port: 5432
Username: postgres
Password: postgres

---

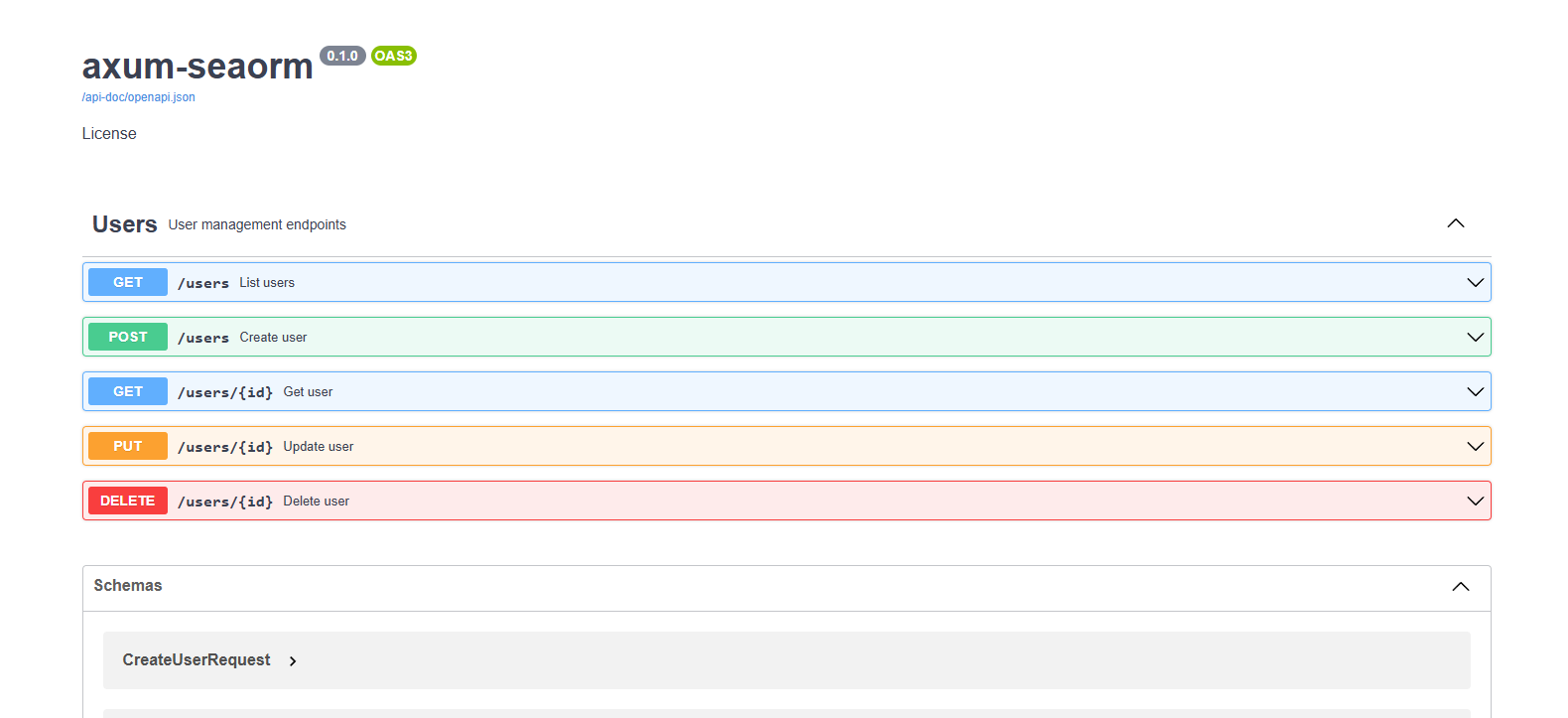

📸 Swagger Screenshot

---

🚀 Production Build (Optimized Docker Image)

A separate production-ready Dockerfile is included.

Build production image:

docker build -f Dockerfile -t axum-api .

docker run -p 3000:3000 --env-file .env axum-api

---

🧹 Clean Everything

docker compose down -v

---

📝 License

MIT
